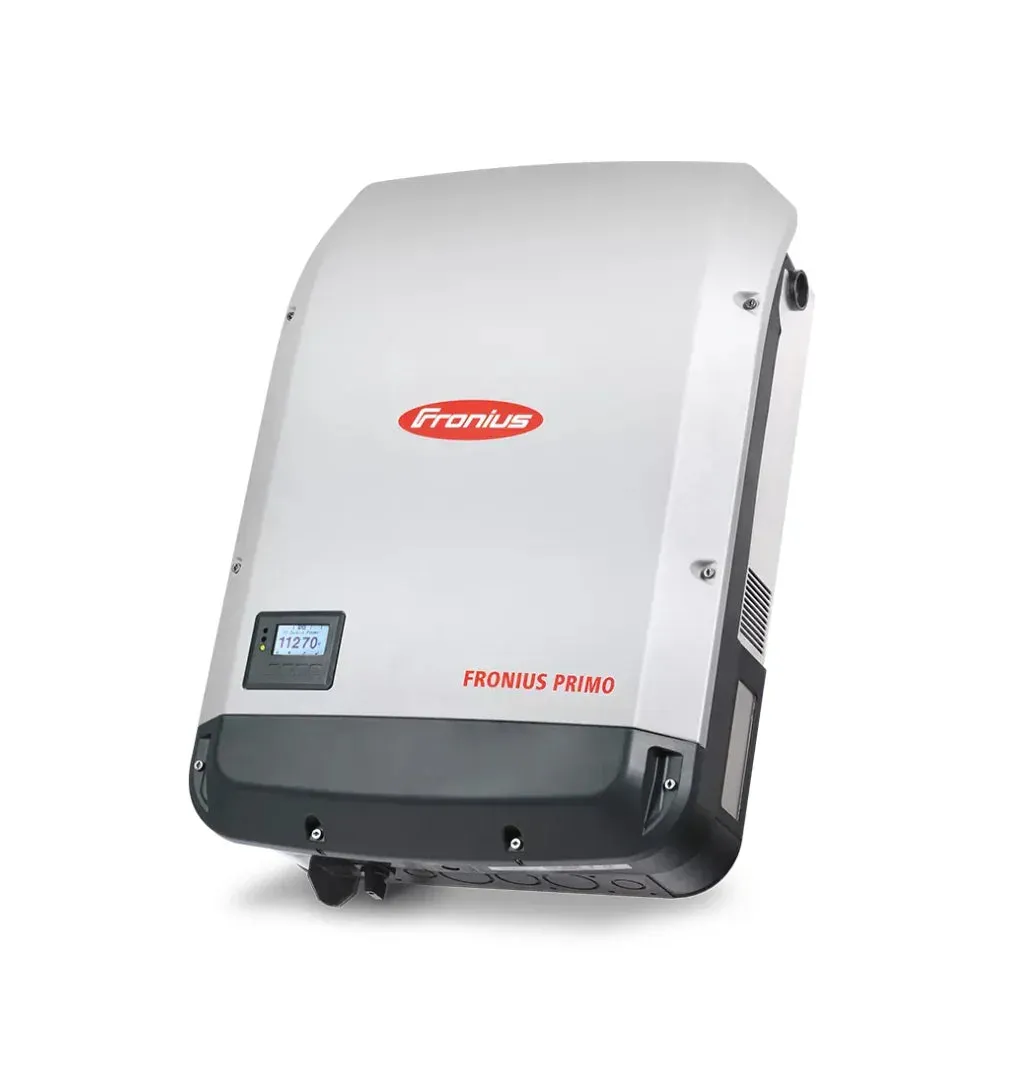

Fronius Primo 11.4-1 208-240VAC Single Phase String Inverter
Welcome to the future of solar energy conversion with the Fronius Primo 11.4-1. Designed for residential use, this single-phase string inverter combines high efficiency, innovative technology, and user-friendly features, making it an ideal choice for homeowners looking to optimize their solar energy systems.
- Superior efficiency and performance with a maximum efficiency of 97.5%.
- Dual MPPT for flexible installation and maximum energy harvest.
- Integrated Wi-Fi and Ethernet connectivity for easy monitoring and control.
- Smart Grid Ready for advanced energy management and grid integration.
- Robust design with NEMA 4X protection for durability in all environments.
Technology and Overview
The Primo 11.4-1 features advanced MPPT technology and a cooling system designed for optimal performance and longevity. Its integrated connectivity options offer seamless integration and monitoring capabilities.
Installation and Compatibility Overview
With its versatile design, the Primo 11.4-1 ensures easy installation and compatibility with various PV modules, making it adaptable to any residential setup.
Benefits and Applications Overview
This inverter not only maximizes your solar investment but also supports a sustainable energy future. It's perfectly suited for residential applications requiring efficient and reliable solar energy conversion.
| Specification | Value |
|---|---|
| Model | PRIMO 11.4-1 |
| Recommended PV power (kWp) | 9.1 - 13.7 kW |
| Max. Input Current | (MPPT 1/MPPT 2 - 33.0 / 18.0 A) (MPPT 1 MPPT 2 - 51 A) |
| Nominal Input Voltage | 660 V |
| Max. Input Voltage | 1000 V |
| Max. Output Power (208V / 240V) | 11,400 VA |
| Max. Continuous Output Current (208V / 240V) | 54.8 A / 47.5 A |
| Frequency Range | 45-55 Hz / 50 - 66 Hz |
| Max. Efficiency | 96.7 % |
| CEC Efficiency 600 V/1,000 V | 96.0 % / 96.5 % |
| Cooling | Variable speed fan |
| Warranty | 10 years / extensions up to 15 and 20 years available 1 |
